SPECIFICATIONS

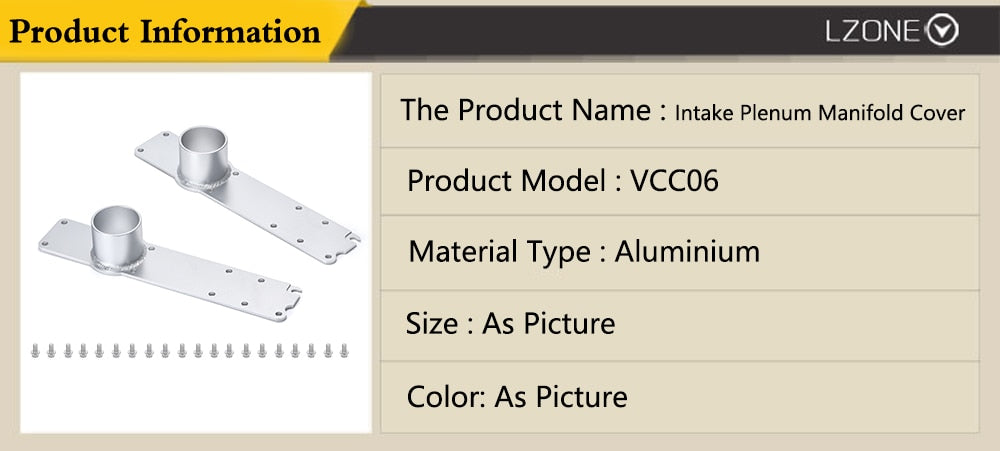

Intake Plenum Manifold Cover for 99-03 Ford 7.3L Powerstroke Diesel E350/450/550 F250/350/450/550

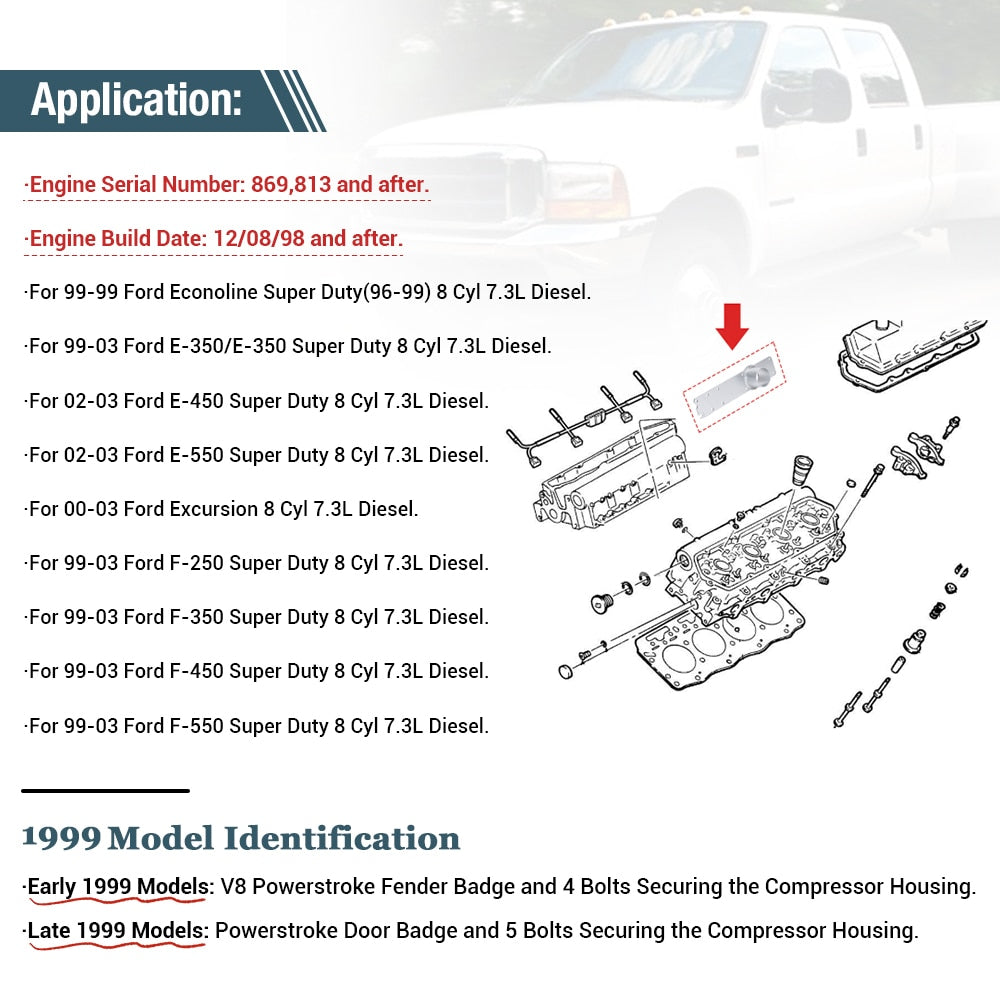

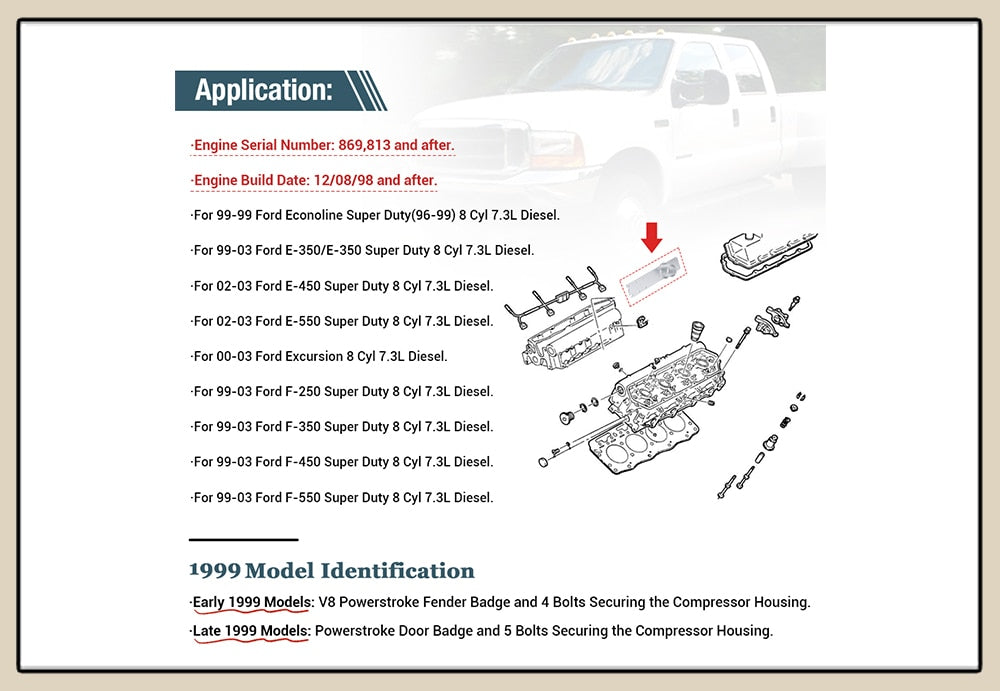

Application:

• Engine Serial Number: 869,813 and after.
• Engine Build Date: 12/08/98 and after.
• For 99-99 Ford Econoline Super Duty(96-99) 8 Cyl 7.3L Diesel.
• For 99-03 Ford E-350/E-350 Super Duty 8 Cyl 7.3L Diesel.
• For 02-03 Ford E-450 Super Duty 8 Cyl 7.3L Diesel.
• For 02-03 Ford E-550 Super Duty 8 Cyl 7.3L Diesel.
• For 00-03 Ford Excursion 8 Cyl 7.3L Diesel.
• For 99-03 Ford F-250 Super Duty 8 Cyl 7.3L Diesel.
• For 99-03 Ford F-350 Super Duty 8 Cyl 7.3L Diesel.
• For 99-03 Ford F-450 Super Duty 8 Cyl 7.3L Diesel.
• For 99-03 Ford F-550 Super Duty 8 Cyl 7.3L Diesel.

1999 Model Identification

• Early 1999 Models: V8 Powerstroke Fender Badge and 4 Bolts Securing the Compressor Housing.
• Late 1999 Models: Powerstroke Door Badge and 5 Bolts Securing the Compressor Housing.

Vehicle compatibility charts are for REFERENCE ONLY. Check your vehicle with OEM below to match your needs.

Specification:

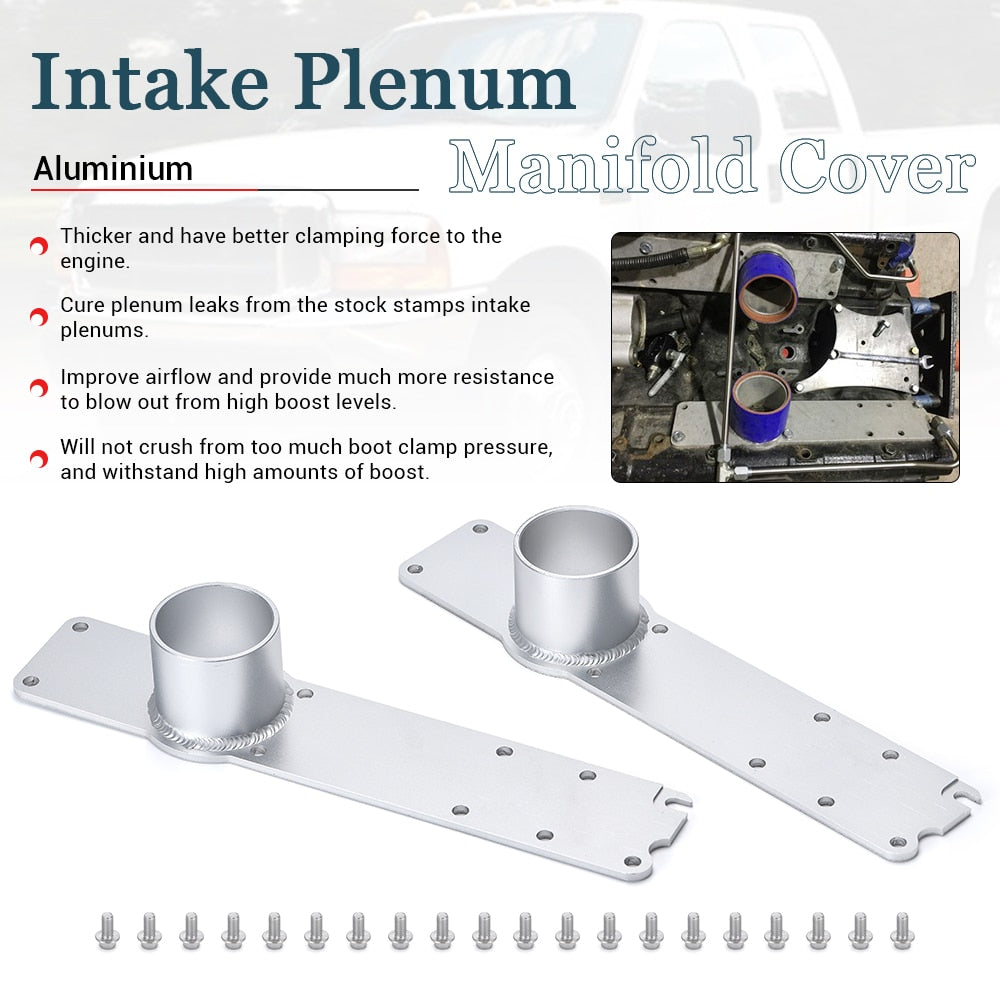

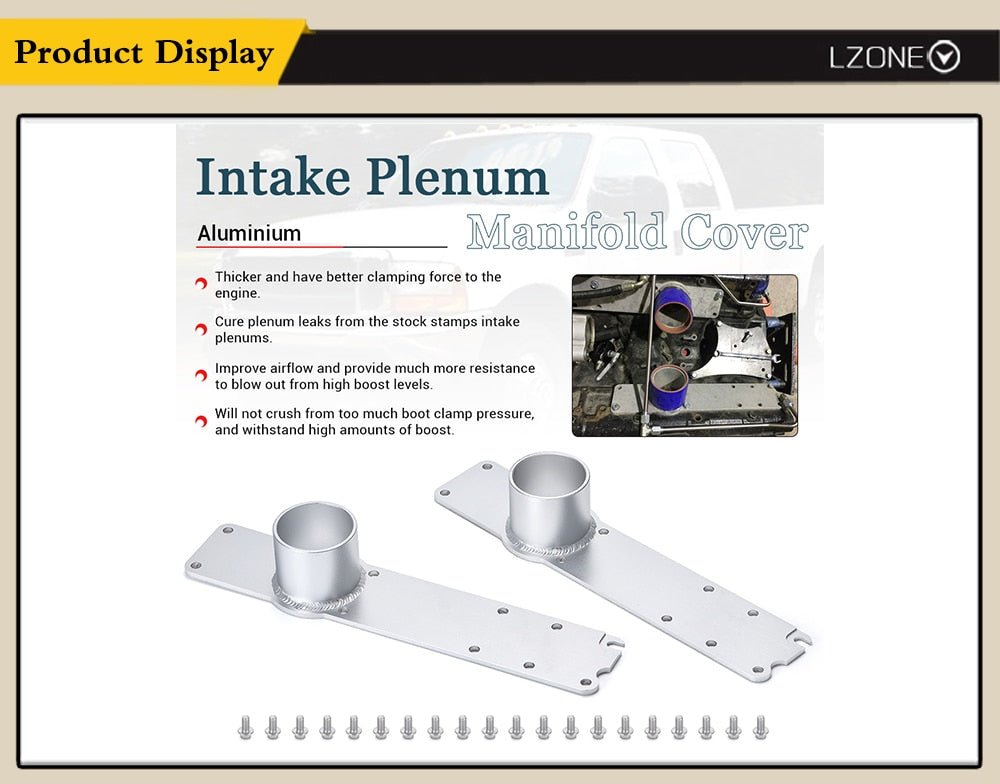

• 100% quality assurance tested, more responsive, less expensive, easier to install.

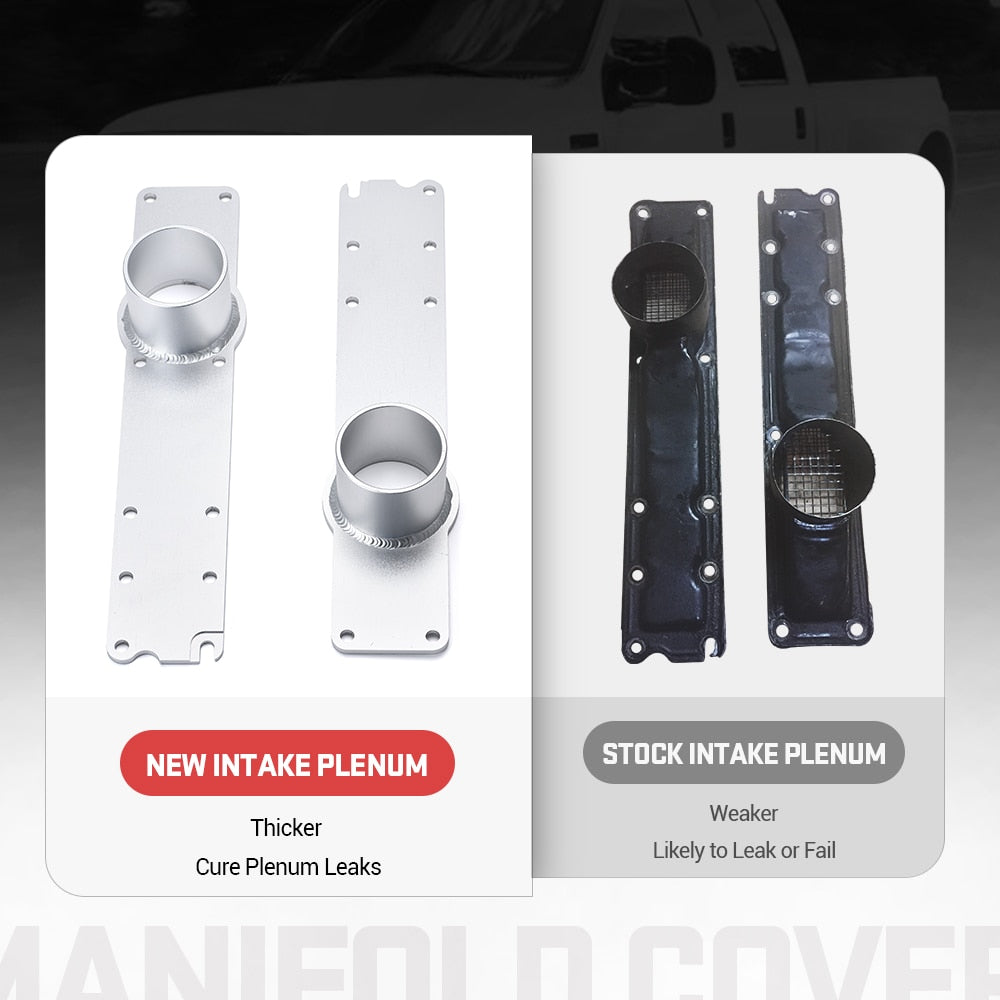

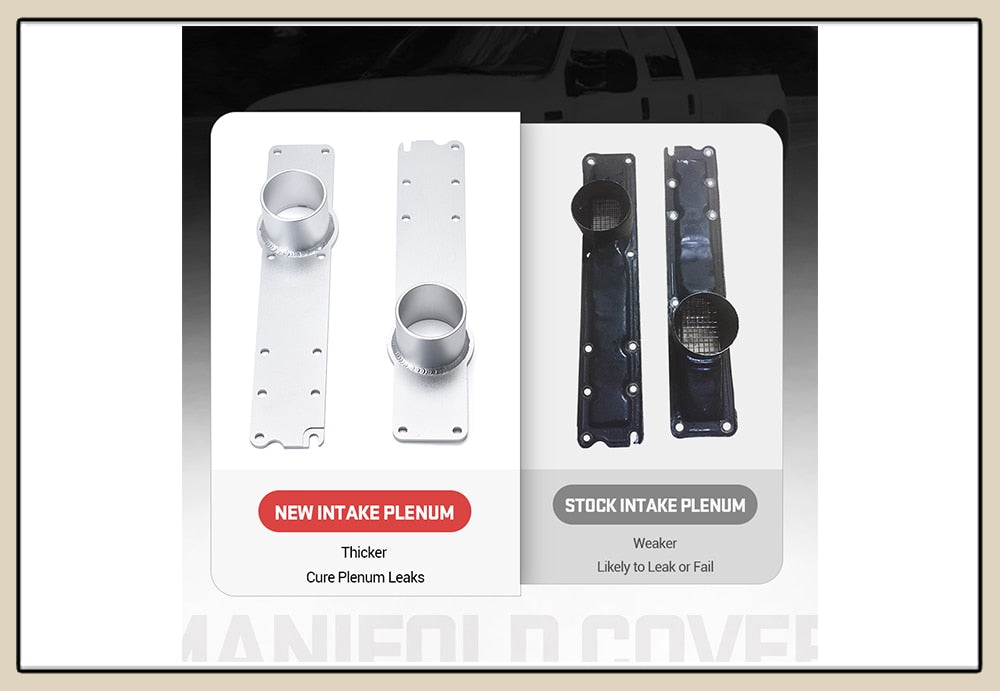

• Thicker and have better clamping force to the engine.
• Cure plenum leaks from the stock stamps intake plenums.
• Improve airflow and provide much more resistance to blow out from high boost levels.
• Will not crush from too much boot clamp pressure, and withstand high amounts of boost.

Material & Color:

• Material: made of high quality Aluminum.
• Color: as picture.

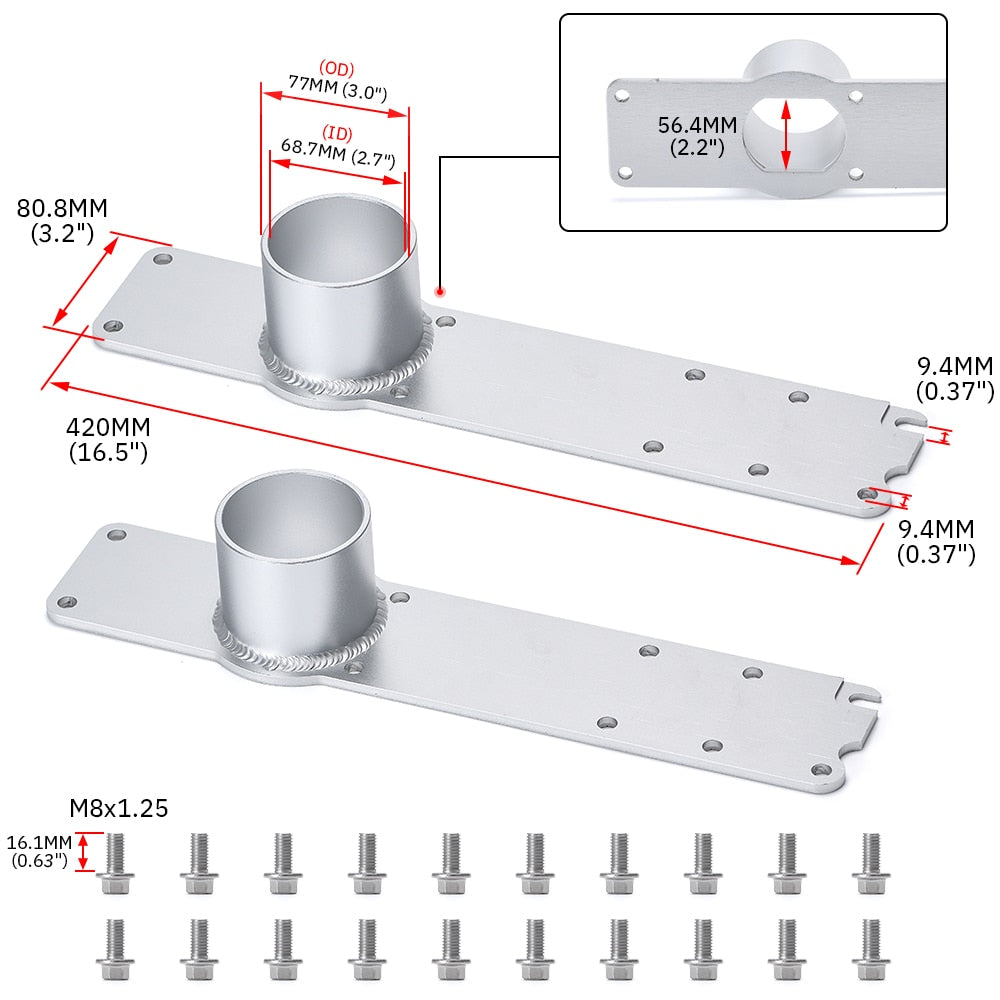

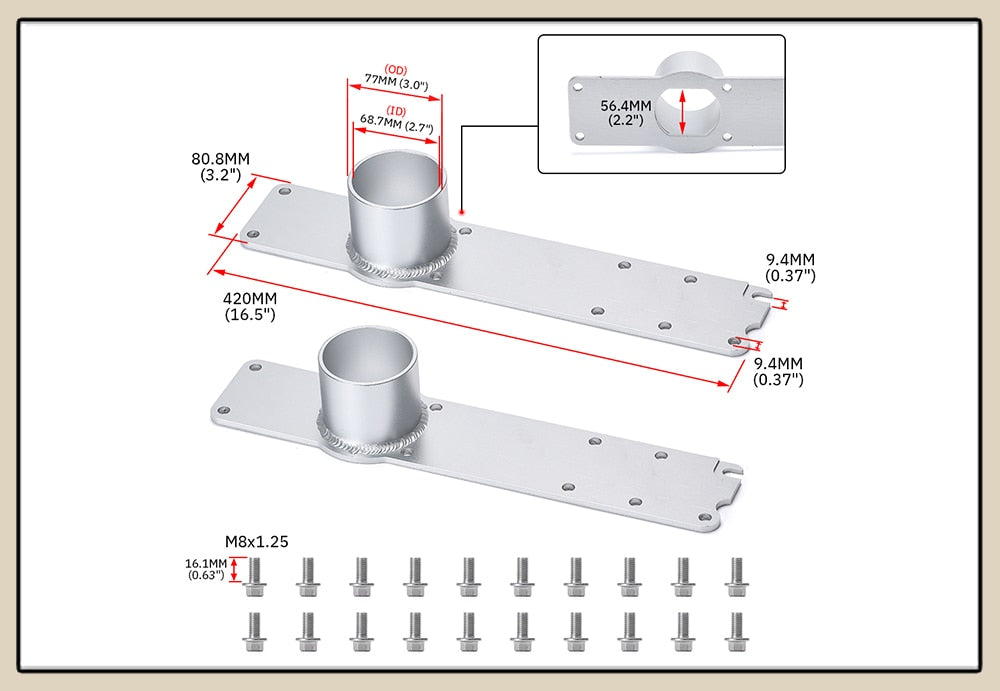

Package Included:

• 2x Manifold Covers;
• 20x Bolts(M8x1.25). (100% Brand New Never Used Or Installed)

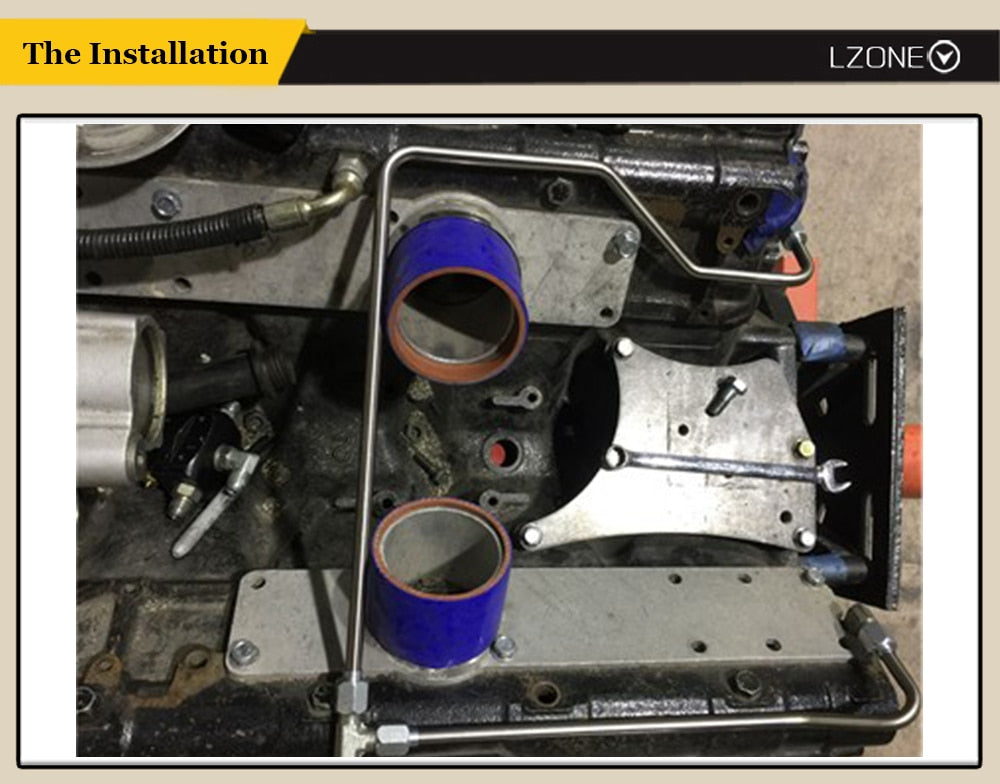

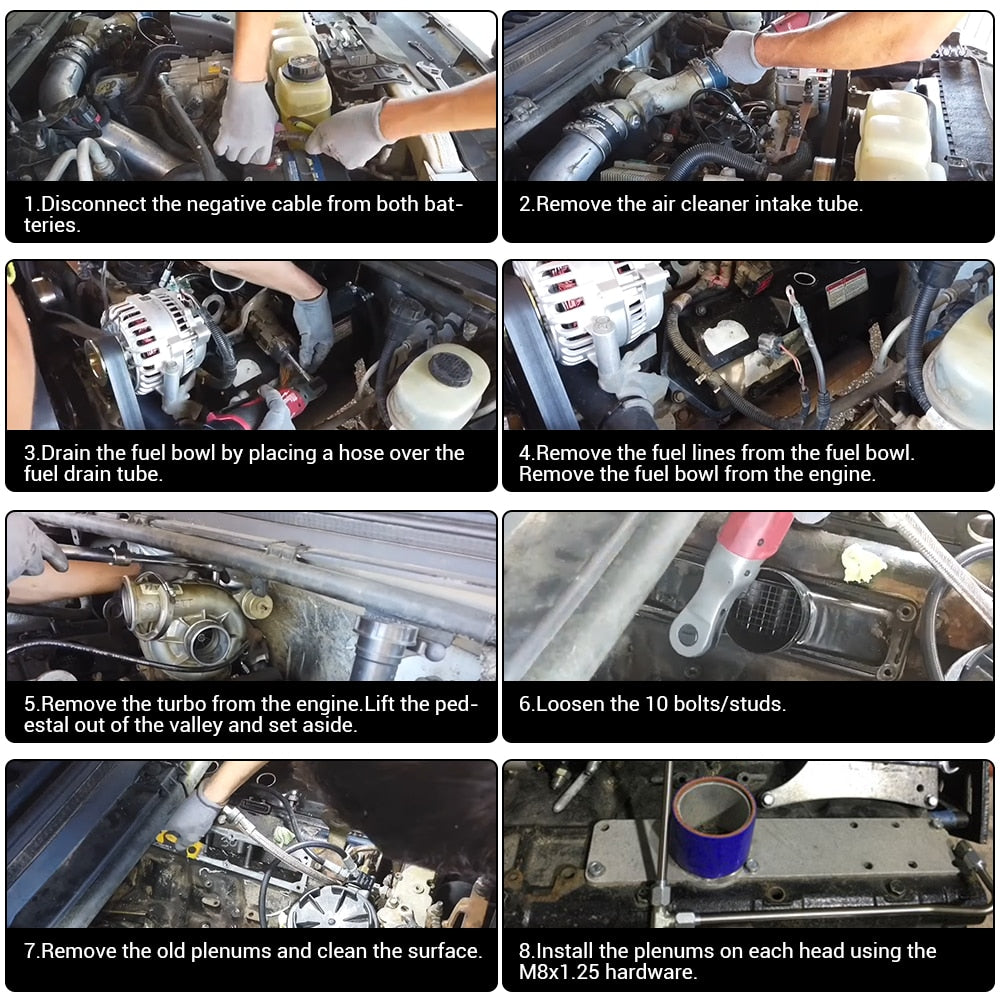

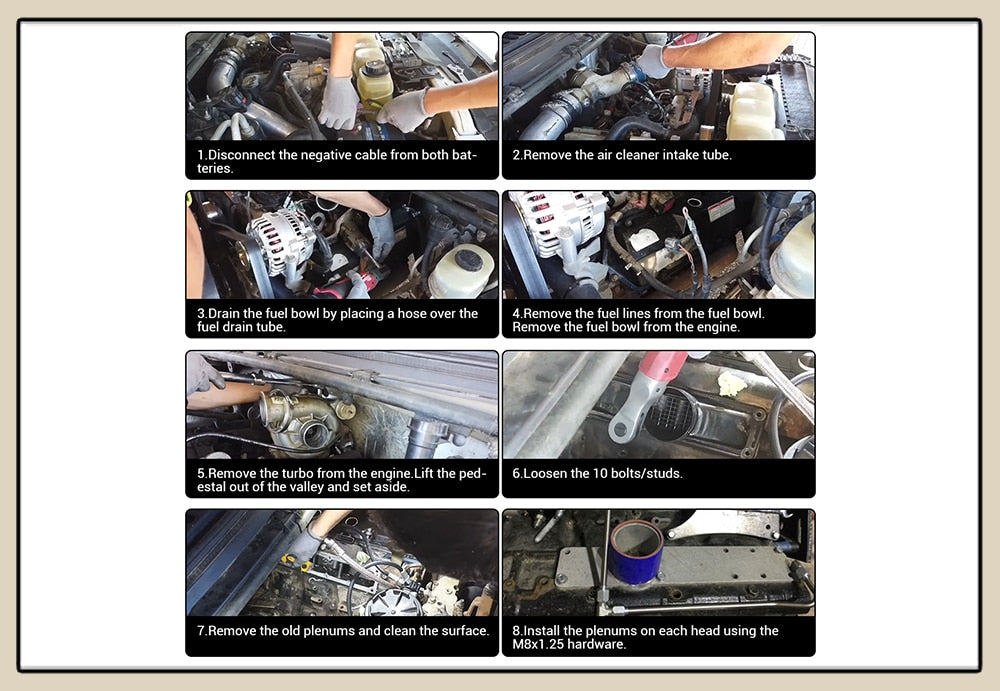

Installation Instruction:

1. Disconnect the negative cable from both batteries.
2. Remove the air cleaner intake tube.
3. Drain the fuel bowl by placing a hose over the fuel drain tube.
4. Remove the fuel lines from the fuel bowl. Remove the fuel bowl from the engine.
5. Remove the turbo from the engine.Lift the pedestal out of the valley and set aside.
6. Loosen the 10 bolts/studs.
7. Remove the old plenums and clean the surface.
8. Install the plenums on each head using the M8x1.25 hardware.
