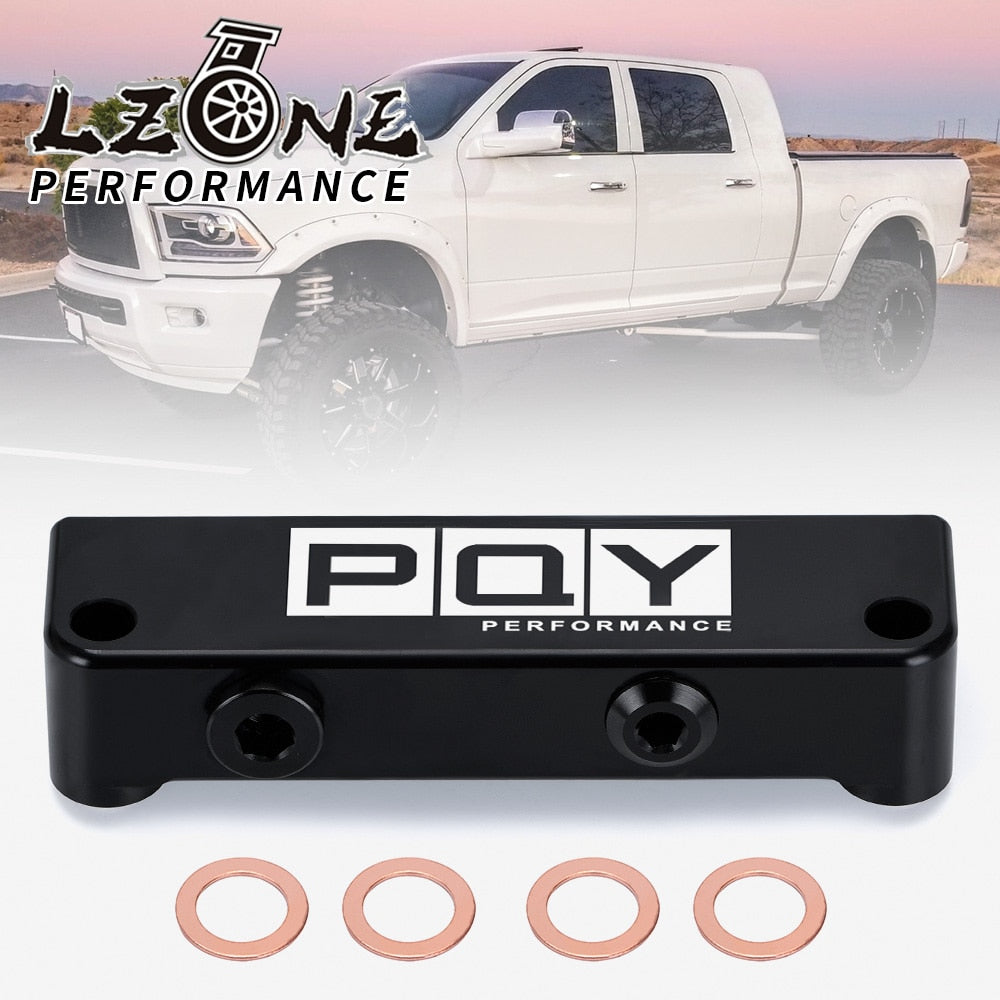

2010-2016 6.7L Cummins Diesel Fuel Filter Replacement Kit Delete Block

• SKU: 200007763:201336102
• Weight: 0.33kg
• Type: Fuel Filter Block
• Color: Black

• Fuel filter Delete Kit/Replacement  for 2010 2011 2012 2013 2014 2015 2016  Dodge Ram 2500 3500 6.7 Cummins Diesel

Fitment:

• 2010 Dodge Ram 2500 3500 6.7 Cummins Diesel
• 2011 Dodge Ram 2500 3500 6.7 Cummins Diesel
• 2012 Dodge Ram 2500 3500 6.7 Cummins Diesel
• 2013 Dodge Ram 2500 3500 6.7 Cummins Diesel
• 2014 Dodge Ram 2500 3500 6.7 Cummins Diesel
• 2015 Dodge Ram 2500 3500 6.7 Cummins Diesel
• 2016 Dodge Ram 2500 3500 6.7 Cummins Diesel

Specification:

• • 100% quality assurance tested, more responsive, less expensive, easier to install.

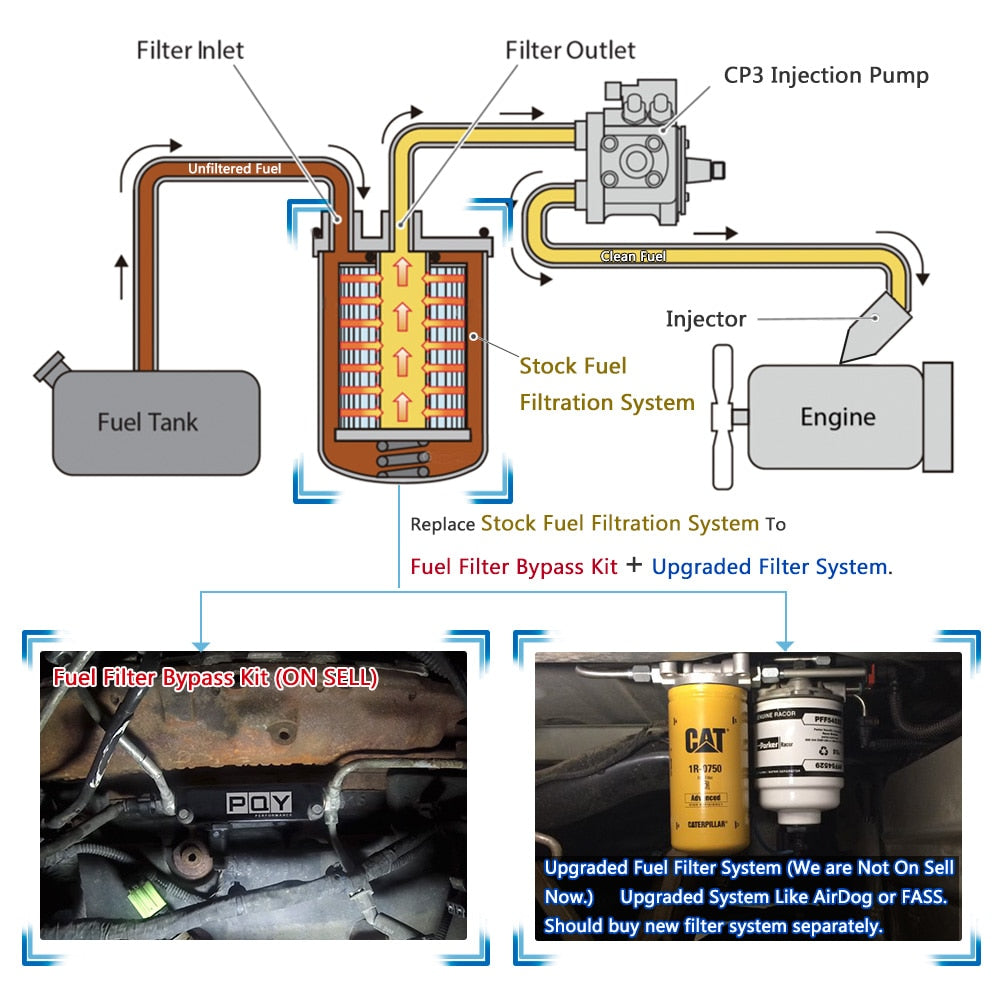

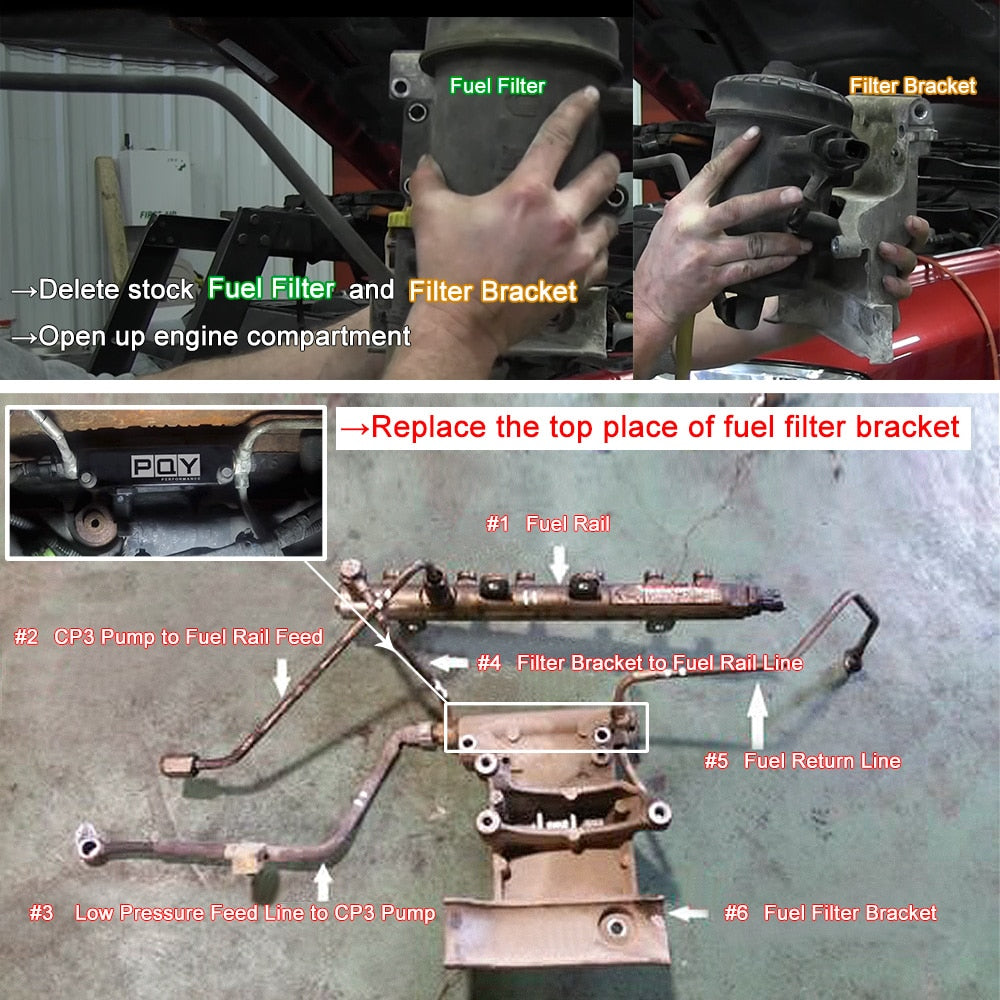

  • Remove factory fuel filter, create better fuel flow and free space under the hood.
  • Allow the use of an aftermarket fuel filtration system such as an Air Dog or FASS.
  • Allow the factory fuel return lines to be used without any relocating or bending.
  • Fuel Filter Delete Block.
  • Replacement Banjo Washers.
  • WIF (Water In Fuel) Sensor Port.
  • 9/16-18 O-ring Port Plug.

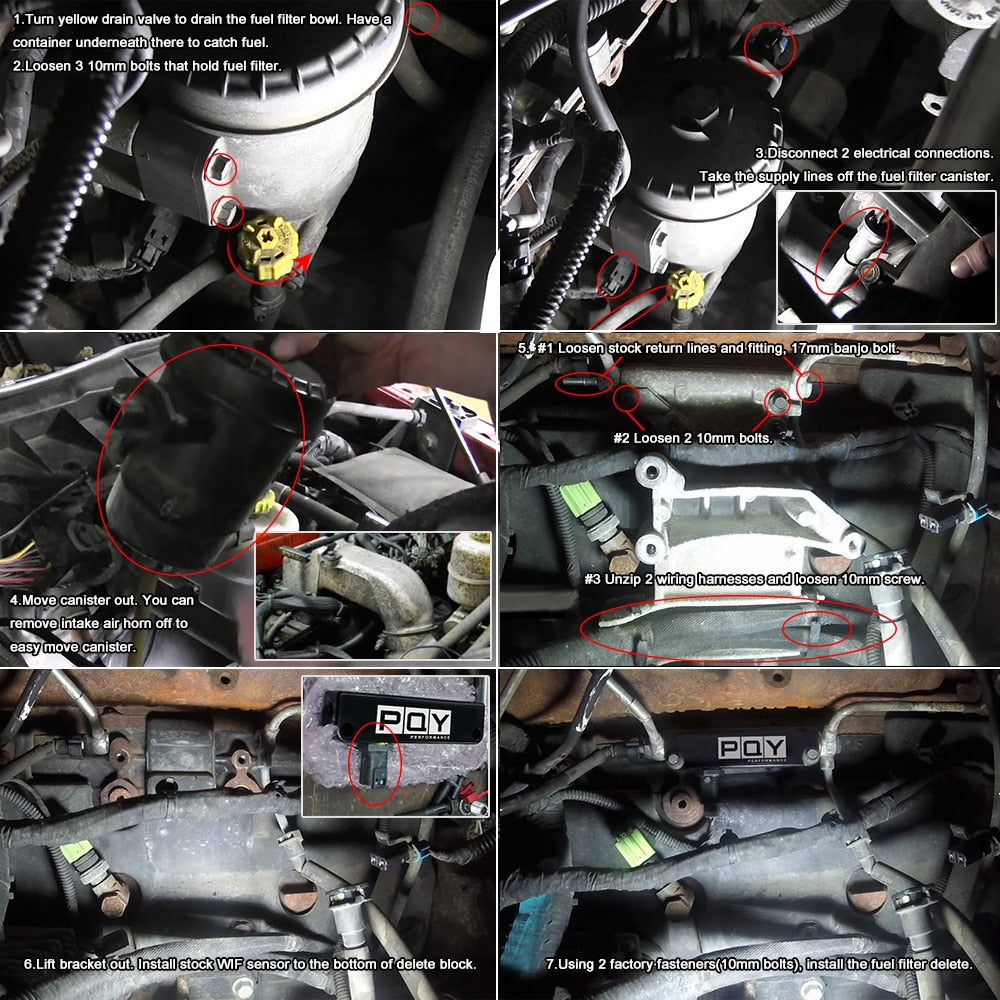

  Installation Steps:

  • 1. Turn yellow drain valve to drain the fuel filter bowl. Have a container underneath there to catch fuel.
  • 2. Loosen 3 10mm bolts that hold fuel filter.
  • 3. Disconnect 2 electrical connections. Take the supply lines off the fuel filter canister.
  • 4. Move canister out. You can remove intake air horn off to easy move canister.
  • 5. #1 Loosen stock return lines and fitting, 17mm banjo bolt.  #2 Loosen 2 10mm bolts.  #3 Unzip 2 wiring harnesses and loosen 10mm screw.
  • 6. Lift bracket out. Install stock WIF sensor to the bottom of delete block.
  • 7. Using 2 factory fasteners(10mm bolts), install the fuel filter delete.
